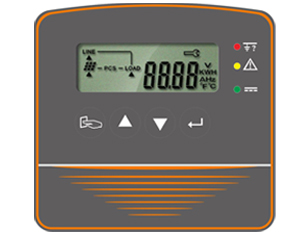

Highlights Compact Size & low weight User Friendly LCD Display Use High MTBF Component Convection Cooling (Fan-less) Intelligence DSP Controller Protection class IP65 Wide MPPT range of 100 to 400 Vdc Intelligence MPPT Technology Anti-islanding Technology RS232 and RS485 communication De-rating function High MPPT tracker efficiency Easy installation Integrated DC switch

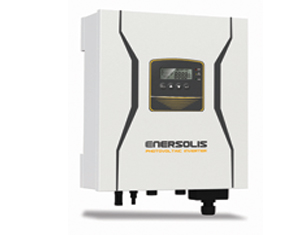

Model
ES 1800
ES 2000
Inverter Technology
Conversion Mode
Sine-wave, Current source, High frequency PWM
Isolation Method
Transformer-less Design
DC Input Data
Nominal DC Voltage
365 Vdc
Max. DC Input Voltage
450 Vdc
Working Range
80 ~ 450 Vdc
Max. DC Input current
10.0 Amp
MPPT Range
100 ~ 400 Vdc
MPPT Tracker
1
AC Output Data
Nominal AC Power
1500 Watt
1800 Watt
Max. AC Apparent Power
<1800 Watt
<2000 Watt
Nominal AC Voltage
230 Vac (L-N)
Output Connect Method
1-Phase / 2-Wire
AC Voltage Rang
184V ~ 264.5V (Base on 230 Vac)
Nominal AC Current
6.52 Amp
7.82 Amp
Frequency
50/60Hz Auto-Selection (47.5 ~ 51.5Hz or 59.3 ~ 60.5Hz)
