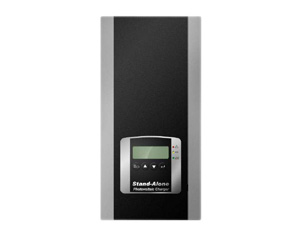

| Model |
Buck-1000W |
Buck-1500W |
| Input |
Voltage |
40V~120V |
| MPPT Range / Operating Voltage |
40~120V @ 12Vbat |
| 40~120V @ 24Vbat |
| 50~120V @ 36Vbat |
| 60~120V @ 48Vbat |
| Current(Max.) |
25A |
35A |
| Max. PV Array Open Circuit Voltage |
150Vdc |
| Output |
Nominal Battery Voltage |
12/24/36/48Vdc |
| Max. Charger/Output Current |
40A |
60A |
| Max. PV Array Power |
1000W |
1500W |
| Ripple Voltage |
<±1V |
| Max. Efficiency |
95% |
| Charge mode |
|
Bulk/Pulse/Float1/Float2 or Bulk/Float1/Float2 |
| DISPLAY |
Status on LCD |
Solar Cell Input Voltage / Solar Cell Input Current/Solar Cell Input Power /Bat. Voltage /Bat. Current /Bat. Ampere-hours/ IGBT temperature /Bat. temperature/Voltage setting table, etc. |
|
| Status on LED |
Normal/Fault/PV Low |
| PROTECTION |
Overload |
>110% shutdown |
>105% shutdown |
|
|
| Short Circuit at load side |
Output current>60A shutdown |
| Solar Cell Polarity Error Protection |
Yes |
| Battery Temperature Compensation(Optional) |
(-3.3mV/℃/cell) |
| Standby Power Consumption |
0W |
| Total Power Consumption while operating |
3.5W |
| ALARMS |
Visible |
Fault, PV Low, Bat. Abnormal, etc. |
| PHYSICALS CHARACTERISTICS |
Mechanical Dimensions WxHxDmm |
165x330x85mm |

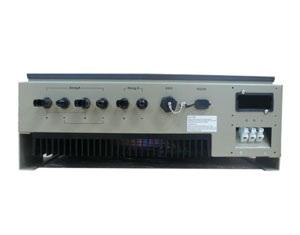

| Input/Output Connectors |
Hardwire(Terminal Block) |
| Enclosure Type |
IP20 |
| Net Weight(Kgs) |
3.2 |
| ENVIRONMENT |
Operating Temperature |
-20℃ to +60℃ |
| Storage Temperature |
-40 to +85℃ |
| Altitude |
0-2000M up to 60 C; 0~3000M up to 55 C |
| Humidity |
100% RH Maximum, No Condensing |
| INTERFACE COMPUTER Type |
Standard RS232 |
| COMPLIANCE |
Quality |
ISO9001 |
| Standard EMC |
EN61000-6-1, EN61000-6-3 |
| Marking |
CE |
| Patent Pending |
Patent No. |
Taiwan: 97147246 |
| China: 200810180491.7 |
| USA: 12/273,669 |
*Specifications subject to change without notice.
**Depending on the model and voltage, more informaion please contact with Ablerex
|
|
|
|
